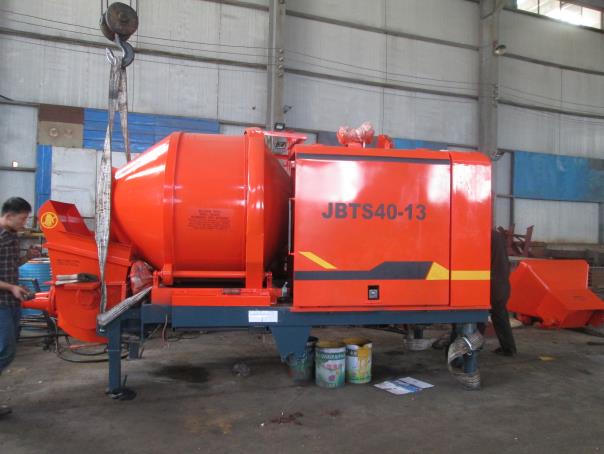

JBT40 Concrete mixi pump
JBT40 Concrete mixi pump
Item （項目） | Unit | JBTS-40R |
Max. Theoretical Concrete Output | m3/h | 40 |
Max. Concrete Pumping Pressure | Mpa | 13 |
Distribution valve | S Valve | |
Conveying tube inner Dim（輸送管內徑） | mm | Φ125A |
Max. Theoretical Conveying Distance (Horizontal Distance/Perpendicular Height)（理論輸送距離 （水平/垂直 ） | m | 200/80 |
Concrete Cylinder Diameter（混凝土缸直徑） | mm | 160*1100 |
Maximum aggregate size（骨料尺寸 ） | mm | 30 |
Concrete slump range（混凝土坍落度 ） | mm | 120-230 |
Diesel model（柴油機型號） | - | 廣西玉柴4105 |
Power（功率） | kw | 85kw |
Fuel tank capacity（油箱容量） | L | 130 |
Cleaning method(管道清洗方式) | High pressure washing | |
Dimension（尺寸） | mm | 5400*2000*2200 |
Total Weight （重量） | kg | 4000 |
Concrete mixer pumping , also known as concrete pump, composed of pump body and pipeline. Is a use of pressure, the concrete along the pipeline continuous conveyor machinery, mainly used in residence buildings, Bridges and the tunnel construction. At present mainly divided into concrete pump and gate valve valve S concrete pump
1.Power system conrete mixer pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted. Diesel power: Germany Deutz, Weichai, Schneider, Japan Siemens, Mitsubishi are adjusted. The main power could be adjusted by the user
2.Electronic control system mobile conrete mixer pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system. Main electric elements are imported original Schneider, Siemens, OMRON, LG etc. The control mode: manual operation and wireless remote control Humanity and intelligent electronic control system optimizes the person-machine interface.8-digital pumping time accumulation timer provides exact data for the user, Automatic anti-pump function and optimized program design. Automatic trouble monitoring function.
3.Hydraulic system mobile conrete mixer pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
4.Pumping system mobile conrete mixer pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.
5.Lubrication System mobile conrete mixer pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
6.Cooling System mobile conrete mixer pump
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
Performance Advantages:
1.High pressure tube and tubes connector adopts foreign advanced products to make sure there is no booster or oil leakage in the hydraulic system.
2.One-way valve is installed in the two main oil cylinder’s piston stroke end, which can forbid bumping cylinder and also fill oil into the closed cavity of the oil cylinder.
3.Imported electric device substantially ensures the high reliability of electric controlling system.
4.Motor adopts “Y-Δ” transition style to avoid harmful consequence.
5.Master cylinder adopts imported approach switch to extend its long service life.
Range of Application:
1) Conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete
2) Conveying refractory and insulation materials
3) Conveying greening soil in ecological environment construction
4) Conveying all kinds of engineering construction in the plain concrete, fiber concrete
5) Pressure grouting of foundation pile
